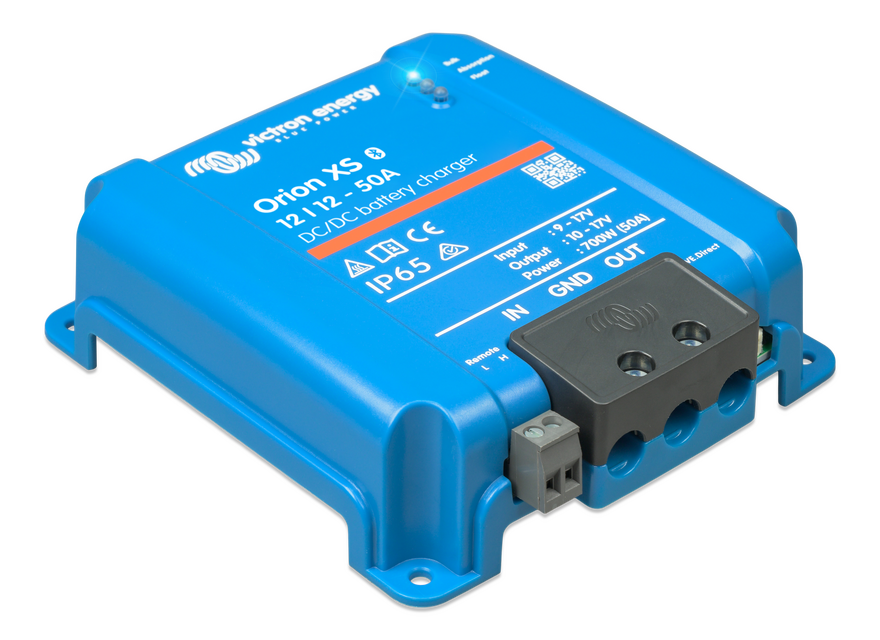

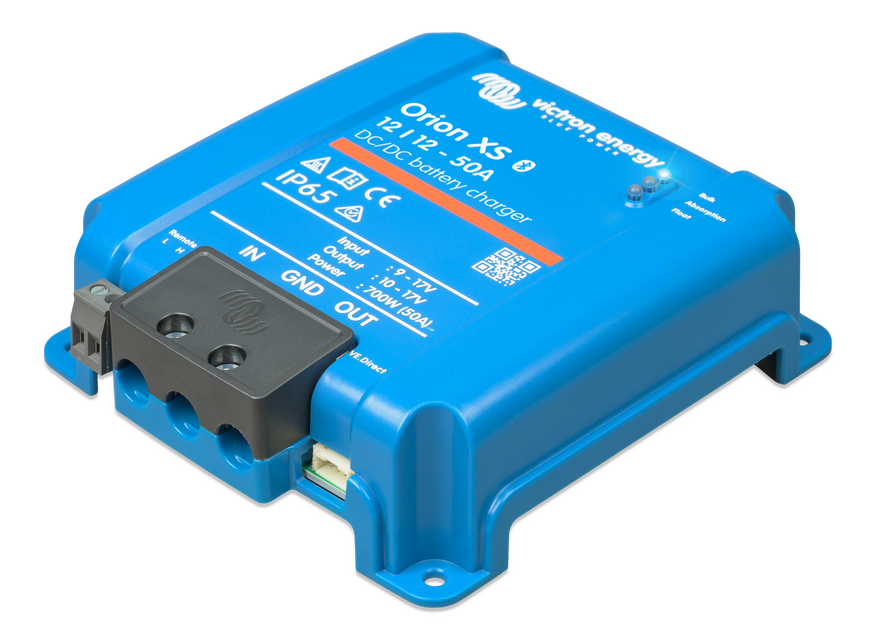

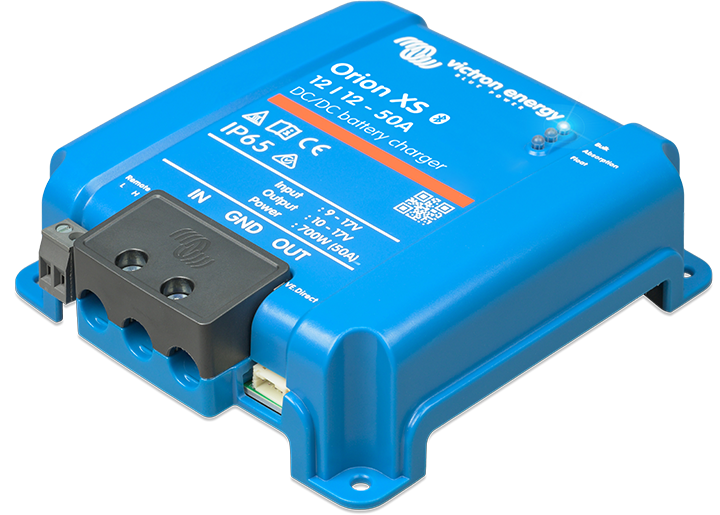

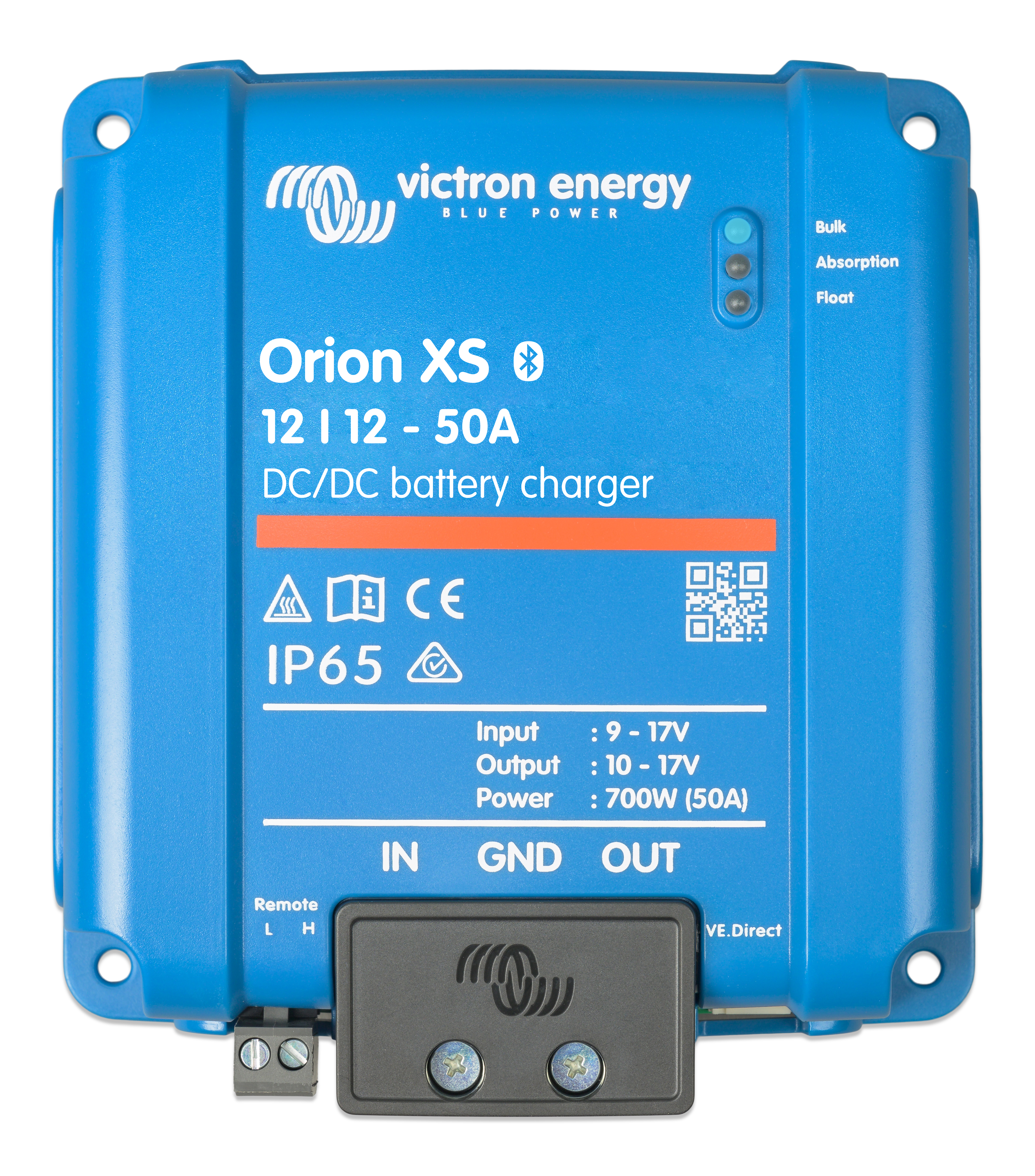

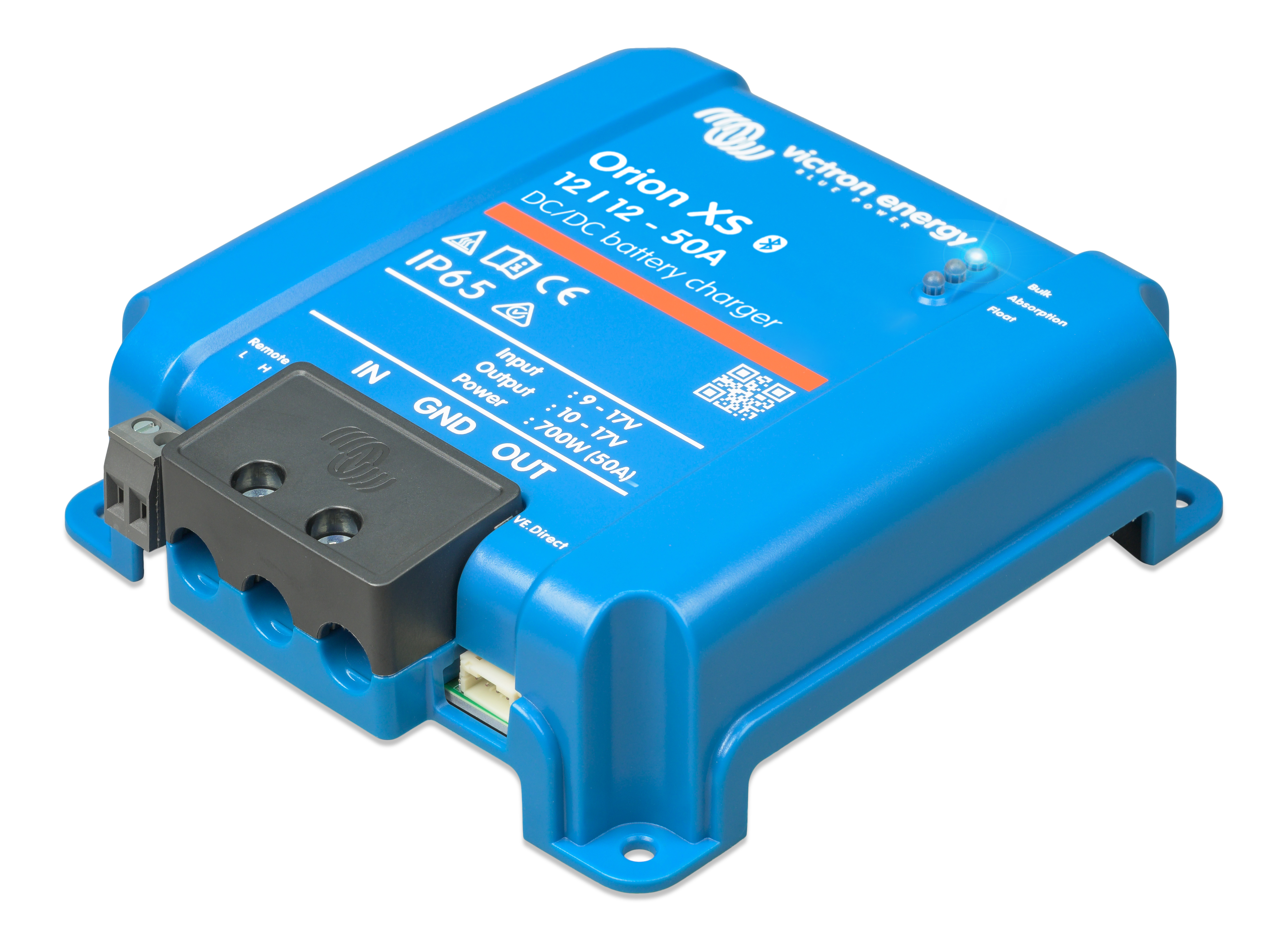

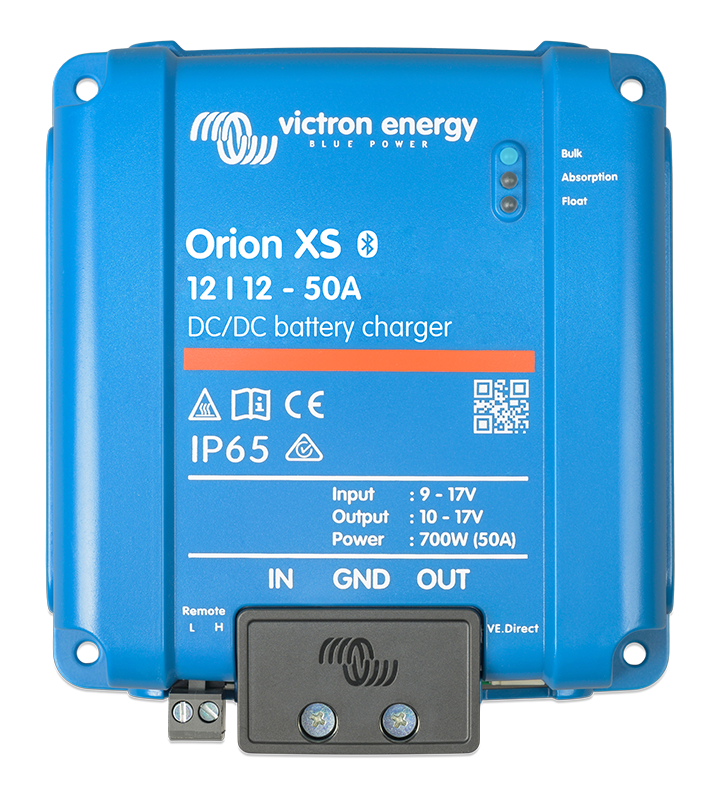

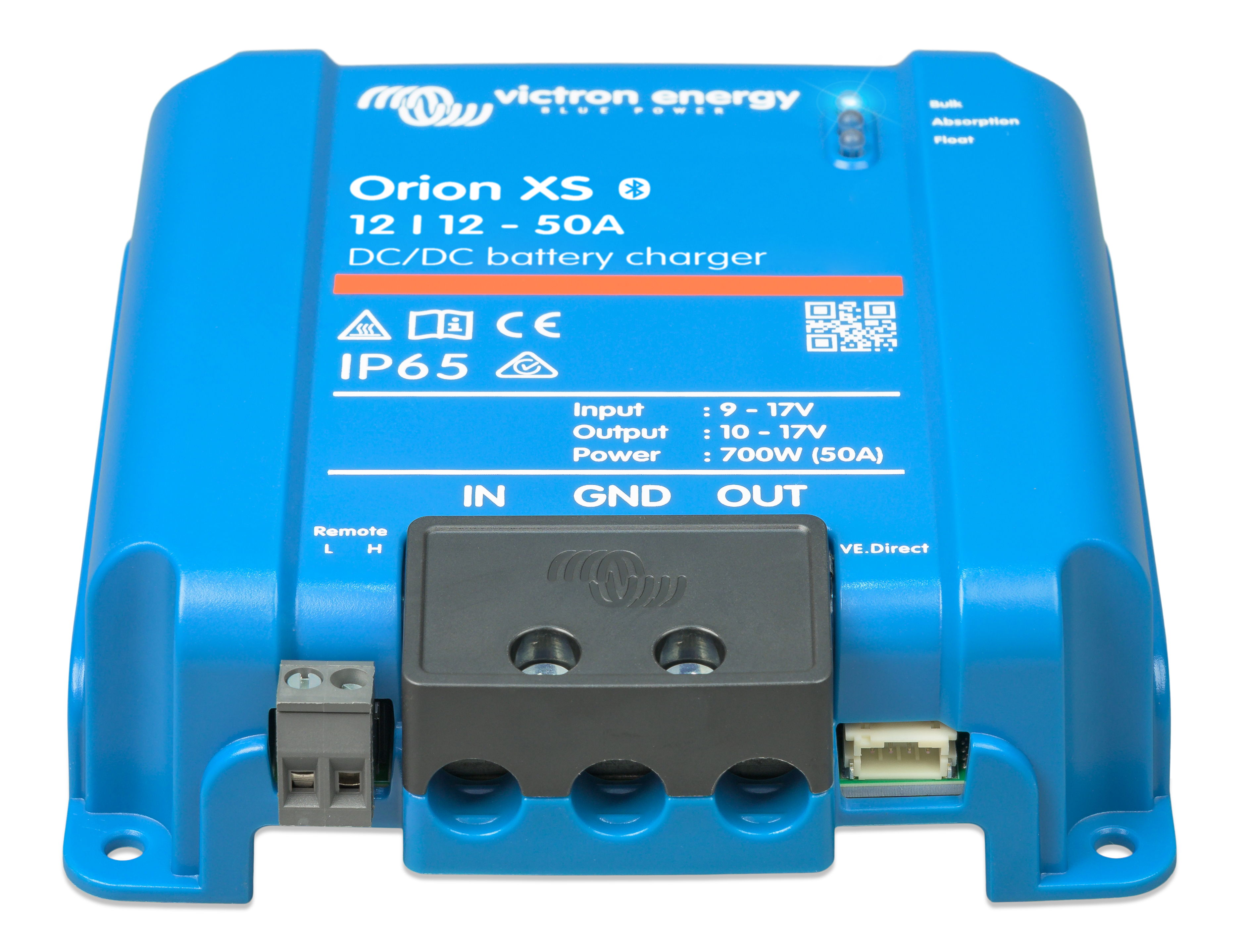

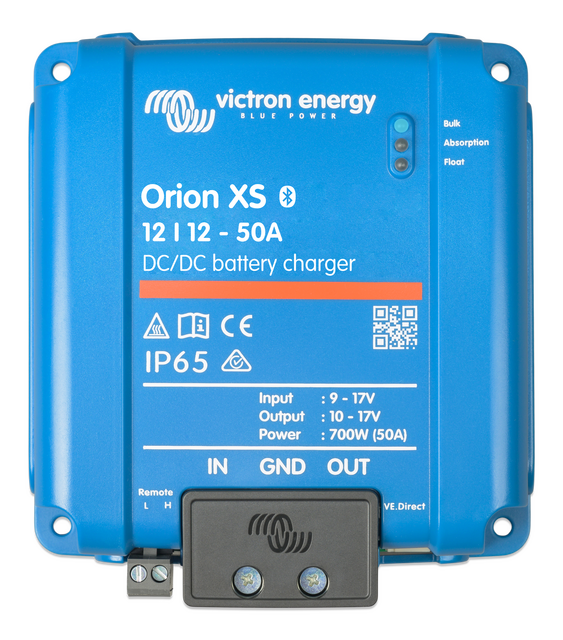

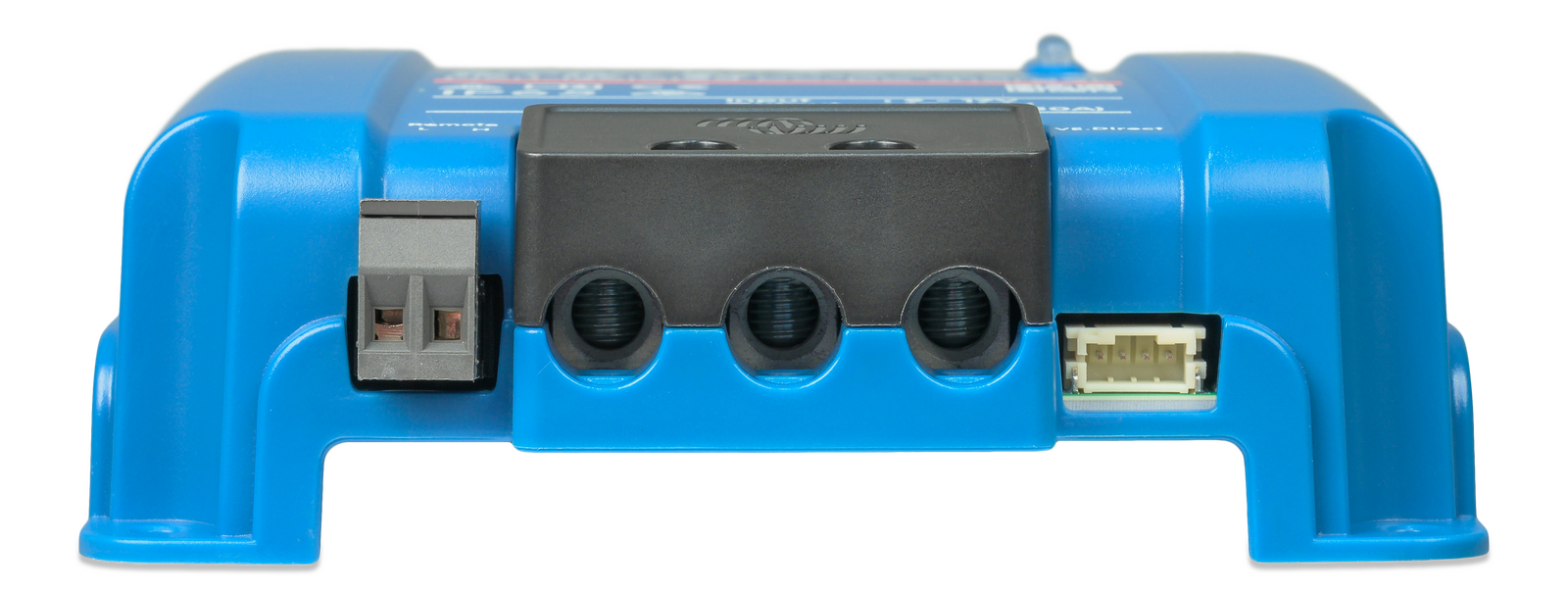

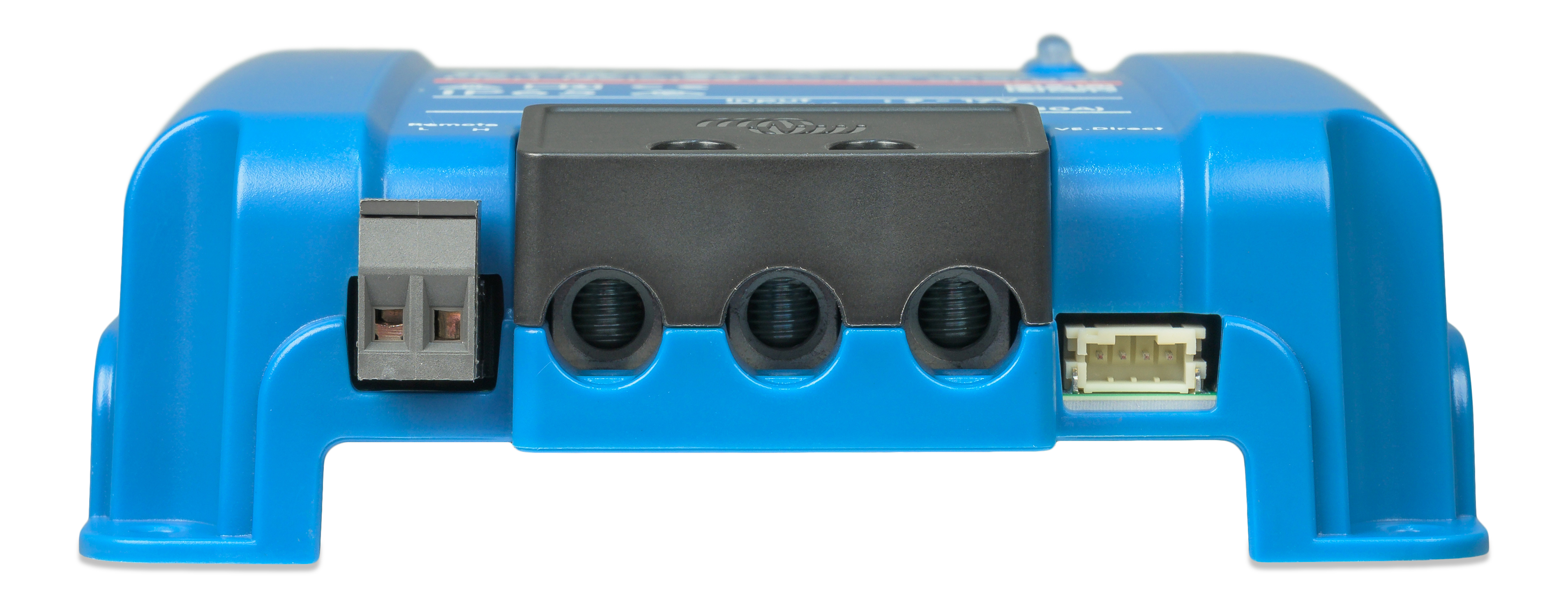

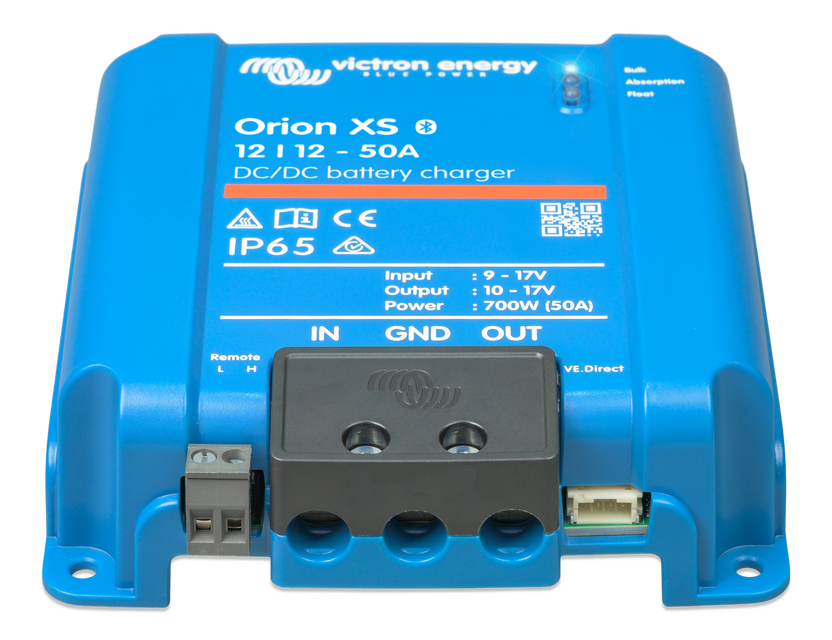

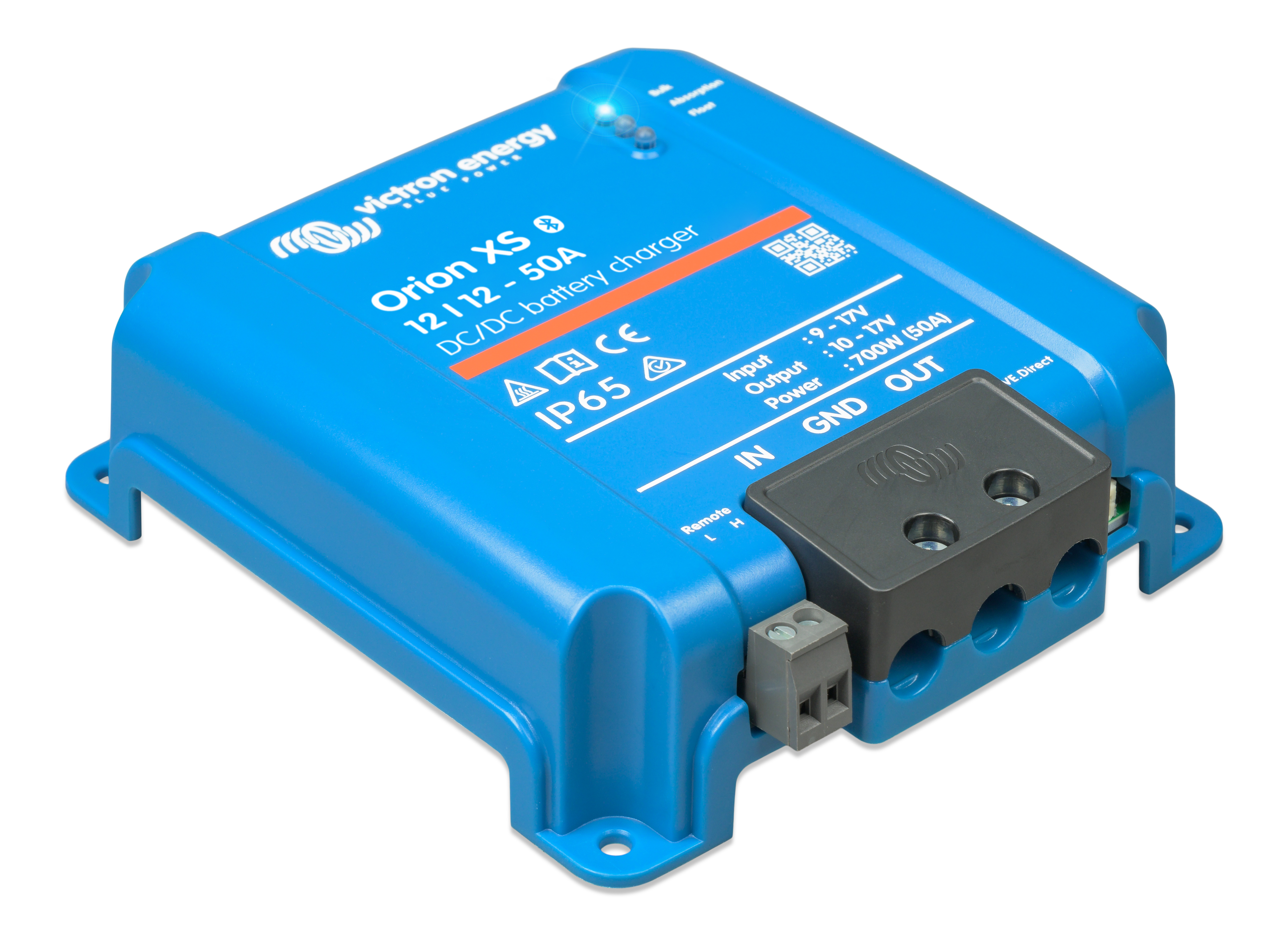

Konstrueret fra bunden, Orion XS omdefinerer fleksibel DC-DC opladning. Til brug i dobbeltbatterisystemer opladet med en (intelligent) generator. Denne enhed sikrer ikke kun førsteklasses ydeevne, men garanterer også sikkerheden af dit system.

Bevar kontrollen med konfigurerbare input- og outputstrømme, og vær sikker på, at din Orion XS kører ved fuld kapacitet op til 40 °C. Den innovative køleteknologi af aluminiumskredsløb leverer en forbløffende effektivitet på 98 % uden behov for blæsere.

Som en integreret del af dit Victron-system tilbyder Orion XS fuld (fjern)overvågning og kontrolfunktioner, hvilket giver dig fuld kontrol over din enhed og dit system.

  • Fuldt ud konfigurerbar
  • Motornedlukning detektion
  • Intelligente opladningsalgoritmer
  • Effektiv køling
  • Fungerer med VictronConnect
  • Fjernovervågning er valgfri

Configurable charging

Precisely set the input and output current with simple controls. This helps protect alternators against overloading and to charge the service battery properly, especially in case of intelligent alternators.

Parallel to increase output current

An unlimited number of Orion XS devices can be connected in parallel. Making scaling the output current to match your system’s requirement easy.

Smart alternator compatibility

With its built-in engine shutdown detection, the Orion XS guarantees the charger only draws power when the engine is running. It also helps retrieving proper charge current from intelligent alternators as found in Euro 5 & Euro 6 engines.

Adaptive charge algorithm

The Orion XS includes customisable charging algorithms and 8 battery preset modes. For lead acid batteries, these settings ensure optimal absorption times for both shallow and deep discharges.

Complete electronic protection

The Orion XS comes equipped with comprehensive electronic protection against overload, short circuit and excessive temperatures. It will automatically reduce the output power when maximum product temperature is reached.

Low temperature shutdown & undervoltage protection

To prevent damage of lithium batteries, the charger will turn off automatically at low temperatures and when the input voltage drops below a user-configurable lockout value, protecting the starter battery from deep discharge.

Dust & waterproof

The Orion XS is designed to withstand dust and water pollution and has an IP65 classification.

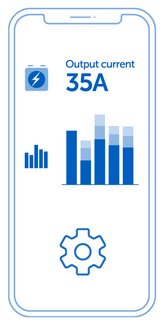

VictronConnect

VictronConnect lader dig få information om din live status og konfigurere ethvert Victron-produkt, uanset om du har indbygget Bluetooth eller er forbundet til en VE.Direct Bluetooth Smart Dongle.
